Everything you need to know about the 12-faced Catalan solid — from its precise mathematics to where it appears in the natural world, and why it has fascinated scientists, architects, and artists for four centuries.
The rhombic dodecahedron has a precise, beautiful set of properties that make it unique among all convex polyhedra.
| Property | Value | Significance |
|---|---|---|
| Faces | 12 — all congruent rhombi | Face-transitive: every face is identical and interchangeable |
| Edges | 24 — all equal length | Every edge has the same length as every other edge |
| Vertices | 14 — two types | 8 of valence 3 (cube corners) + 6 of valence 4 (face centres) |
| Euler characteristic | χ = 2 | F − E + V = 12 − 24 + 14 = 2 ✓ |
| Symmetry group | Oh, m3̄m | Full octahedral symmetry, order 48 |
| Dual solid | Cuboctahedron | Vertices ↔ Faces; shares same symmetry group |
| Face shape | Rhombus, diagonals 1:√2 | The unique rhombus enabling octahedral symmetry |
| Acute face angle | arccos(1/3) ≈ 70.53° | The tetrahedral angle — same as methane, diamond |
| Obtuse face angle | arccos(−1/3) ≈ 109.47° | Supplement of the tetrahedral angle |
| Dihedral angle | 120° exactly | Same as hexagonal honeycomb — optimal load distribution |
| Volume | 2a³ | Exactly twice the inscribed cube — clean integer ratio |
| Classification | Catalan solid | One of 13 Catalan solids — duals of the Archimedean solids |
| Space-filling | Yes — by translation | One of only 5 convex solids that tessellate 3D space |
Eight vertices of order 3 — where three faces meet, at the corners of an inscribed cube. Six vertices of order 4 — where four faces meet, at the face-centres of that cube. Together 8+6=14, reflecting both cubic and octahedral symmetry simultaneously.
The 8 order-3 vertices form a cube. The 6 order-4 vertices form a regular octahedron. The rhombic dodecahedron is precisely the convex hull of a cocentred cube–octahedron compound — the compound made convex.
Nature discovered this solid long before humans named it. The rhombic dodecahedron appears independently across mineralogy, biology, and physics wherever maximum efficiency is required.
The mineral garnet (Mg₃Al₂Si₃O₁₂ and relatives) crystallises naturally as a rhombic dodecahedron. So consistently that mineralogists call this crystal habit the "dodecahedral form." Pyrite, magnetite, and certain alums also exhibit it. The cubic unit cell of these minerals produces rhombic dodecahedral external geometry through the way atoms pack.
While the hexagonal cells of a honeycomb are well-known, less known is that the closed ends — the caps that seal off each cell — are composed of three rhombi meeting at exactly 70.53°: the acute angle of the rhombic dodecahedron face. Kepler noted this geometric coincidence in 1611. The arrangement minimises wax used per unit volume.
In face-centred cubic metals (gold, aluminium, copper, nickel), the Voronoi region around each atom — the set of points closer to that atom than any other — is a rhombic dodecahedron. FCC is the densest possible sphere packing in 3D. The rhombic dodecahedron is therefore the fundamental building block of nature's most efficient atomic arrangement.
Many pollen grains approximate rhombic dodecahedral geometry. The form maximises surface area for aperture placement while minimising volume — advantageous for both pollen dispersal and fertilisation. Oak, beech, and several grass species produce grains with clear dodecahedral faceting under electron microscopy.
When bubbles pack together under equal pressure with near-equal volumes, they form polyhedral cells approaching the rhombic dodecahedron in geometry. Kelvin's problem — what shape minimises surface area for equal-volume space-filling — involves the truncated octahedron, but the rhombic dodecahedron is its close relative and natural alternative.
The orthogonal projection of a 4-dimensional hypercube (tesseract) along its main diagonal produces a rhombic dodecahedron in 3D space. This is not an approximation — it is exact. The eight cubic cells of the tesseract project to eight congruent rhombohedra that fill the dodecahedron exactly, relating the solid to four-dimensional geometry.
Take a cube of side a. On each of its six faces, place a square pyramid of height a/2. The result is a rhombic dodecahedron of edge length a√(3/2).
This is why the volume is exactly 2a³: the cube contributes a³ and the six pyramids together contribute another a³ (each pyramid has volume a²·(a/2)/3 = a³/6; six pyramids = a³).
This is also the construction our Rhombic-Cube 3D viewer animates in real time — watch the cube grow into a rhombic dodecahedron by extruding pyramid apexes.
Only five convex polyhedra fill 3D space by translation alone — the five parallelohedra identified by Fedorov in 1885: the cube, hexagonal prism, rhombic dodecahedron, elongated dodecahedron, and truncated octahedron.
The rhombic dodecahedron achieves this because it is the Voronoi cell of the FCC lattice — the densest possible sphere packing. Translating rhombic dodecahedra by FCC lattice vectors tiles all of 3D space.
This has profound architectural implications: rhombic dodecahedron pods can tessellate into villages, compounds, and multi-storey structures without structural gaps or awkward connector pieces.
The rhombic dodecahedron and the cuboctahedron are duals: the 14 vertices of the cuboctahedron correspond to the 14 faces of the rhombic dodecahedron, and vice versa. Both have the same symmetry group (Oh) and the same edge graph structure when dualised.
In Strena seu de Nive Sexangula, Kepler first described and named the rhombic dodecahedron, noting its relationship to the cubic lattice and its occurrence in the honeycomb. He showed it arises from stacking cannonballs in the FCC arrangement.
Catalan systematically catalogued the duals of the Archimedean solids, establishing the rhombic dodecahedron as the dual of the cuboctahedron and naming the full family of 13 Catalan solids in his honour.
Russian crystallographer Fedorov proved the five parallelohedra theorem — establishing that the rhombic dodecahedron is one of exactly five convex solids that tile space by translation, connecting it to crystallographic theory.
X-ray crystallography confirmed the FCC-Voronoi connection in metals. The rhombic dodecahedron became a fundamental object in solid-state physics and materials science. Buckminster Fuller referenced it in his synergetics.

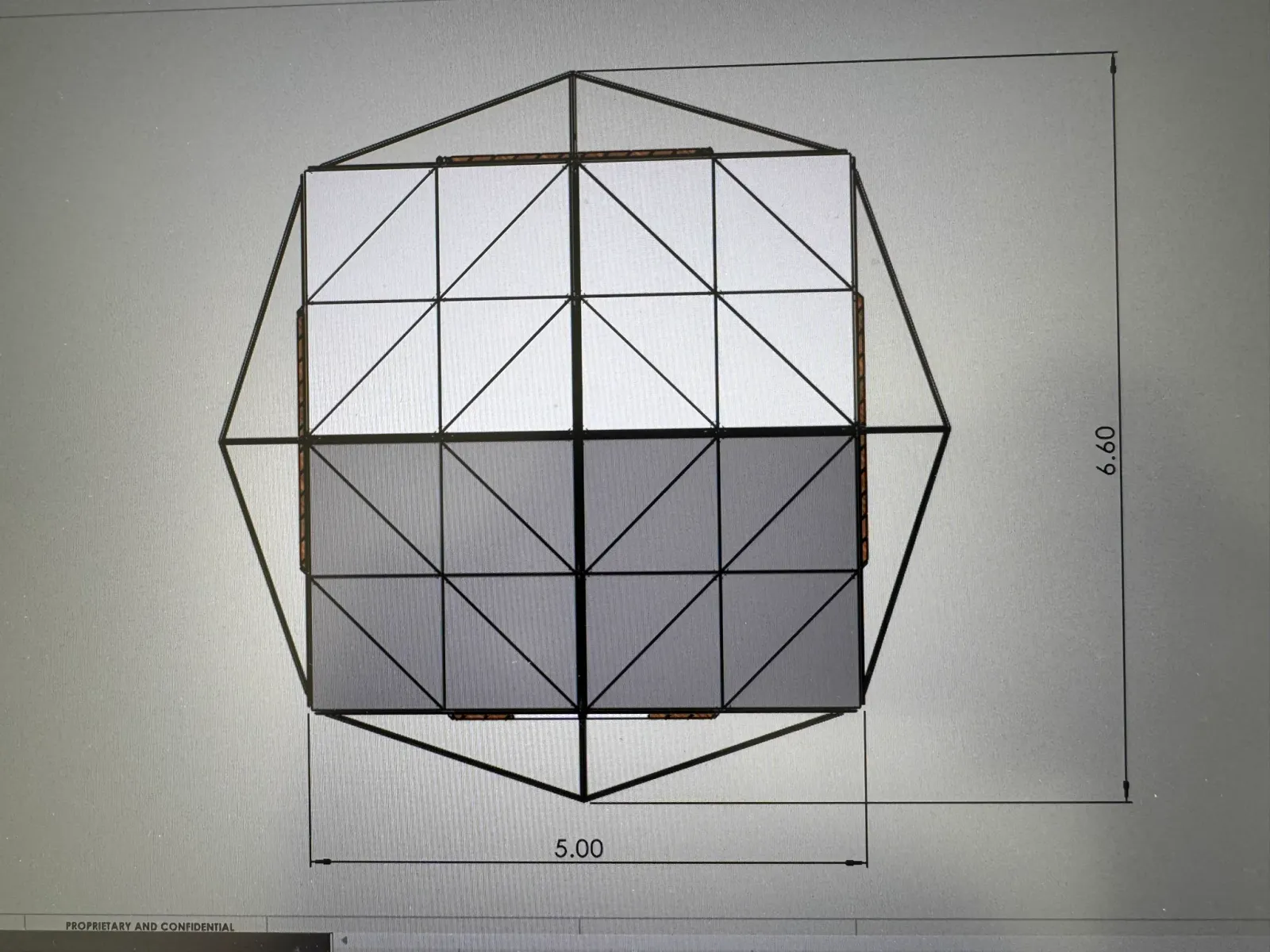

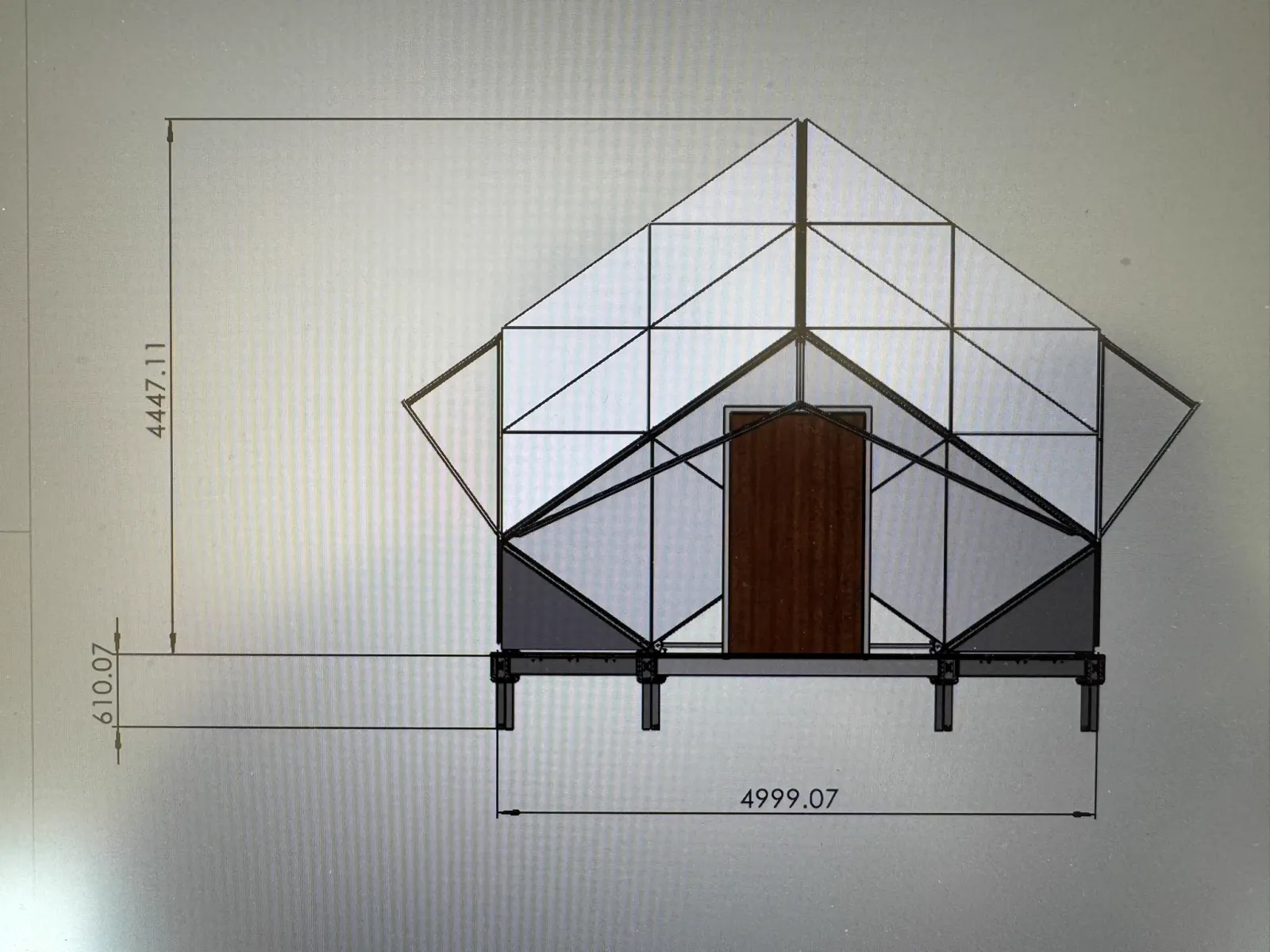

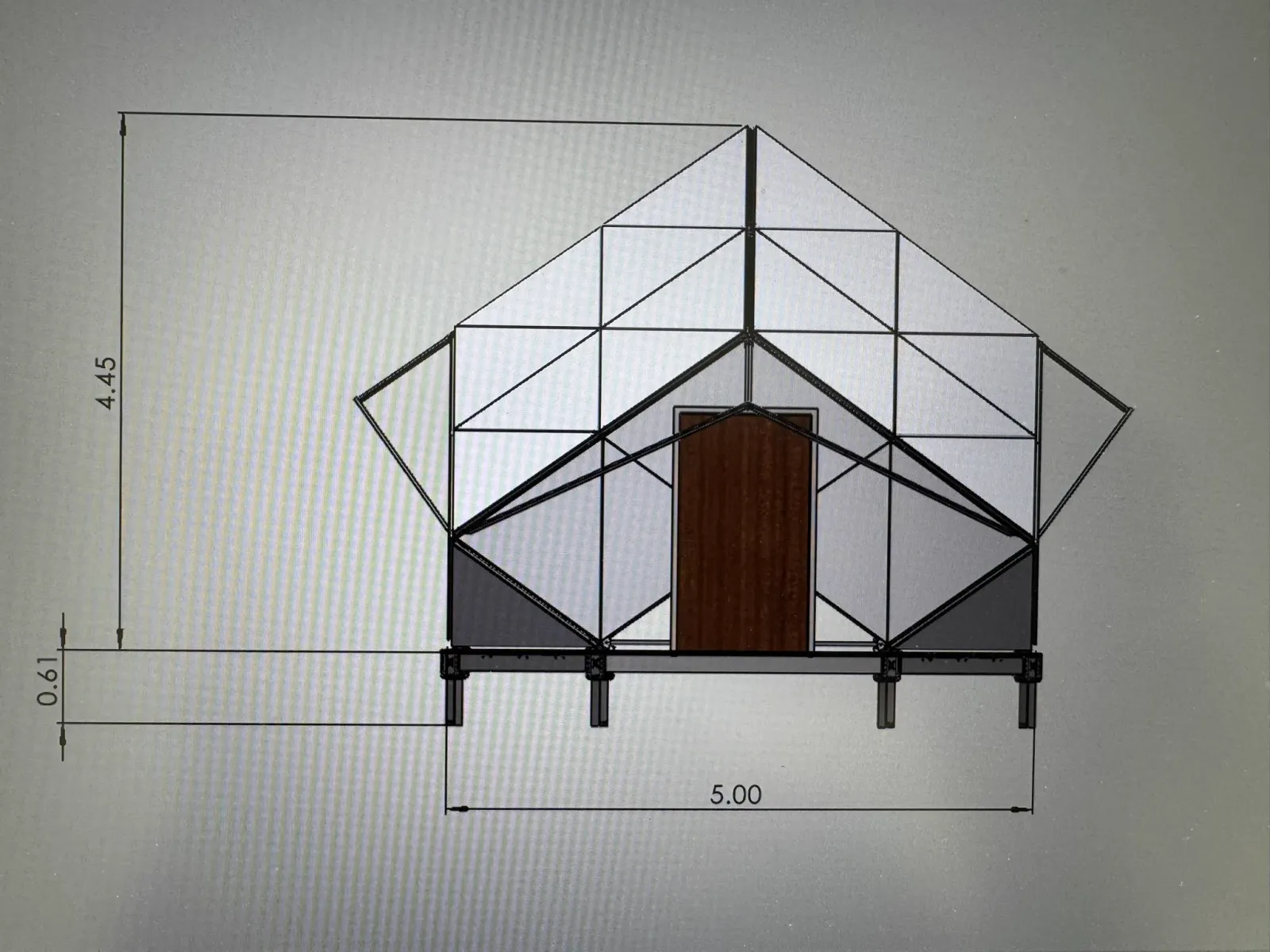

GenBuilt Systems and RhombicDodecahedron.com are pioneering the solid as a built form — engineering what nature and mathematics long identified as the optimal space-filling geometry into habitable, beautiful homes.
Stacked face-to-face, rhombic dodecahedra fill three-dimensional Euclidean space perfectly. Only four other convex polyhedra share this rare property, making the rhombic dodecahedron one of nature's most fundamental space-organising shapes.
ParallelohedronIn the face-centred cubic lattice — the densest sphere packing in 3D, used by gold, silver, copper, and aluminium atoms — the region of space closest to any single atom is exactly a rhombic dodecahedron. This makes it the fundamental unit of the most common metallic structure on Earth.
FCC · VoronoiThe caps that seal honeycomb cells are made of three rhombi at exactly 70.53° — the acute angle of a rhombic dodecahedron face. Kepler noted this in 1611. Bees independently discovered this geometry as the solution to minimising wax per unit of stored honey.
Honeycomb · Kepler 1611Replace every vertex of a cuboctahedron with a face, and every face with a vertex, and the rhombic dodecahedron emerges. Both solids share the same symmetry group — full octahedral symmetry of order 48 — making the rhombic dodecahedron one of the 13 Catalan solids.
Catalan solid · DualConstructed by adding six square pyramids of height a/2 to a cube of side a, the rhombic dodecahedron has volume exactly 2a³. This clean integer ratio — unique among Catalan solids — makes it the most volumetrically efficient space-filling form in relation to its inscribed cube.
Volume = 2a³Eight three-valent vertices sit at the corners of an inscribed cube; six four-valent vertices sit at the centres of that cube's faces. Together 8+6=14 vertices, with two distinct local geometries — reflecting both the cubic and octahedral symmetry families simultaneously.
Vertex typesThe acute angle of every rhombus face is arccos(1/3) ≈ 70.53° — precisely the bond angle of methane (CH₄) and the angle between any two bonds in a tetrahedral carbon. The obtuse angle, arccos(−1/3) ≈ 109.47°, is the supplement, and also the tetrahedral angle from the opposite side.
70.53° · ChemistryThe faces are not just any rhombi — they are the unique rhombus whose diagonals stand in ratio 1:√2. This specific irrational ratio is the only one that allows 12 copies to assemble with full octahedral symmetry, and it is the same ratio as the side of a square to its diagonal.
1:√2 ratioThe mineral garnet crystallises naturally as a rhombic dodecahedron — so reliably that mineralogists call this crystal habit the "dodecahedral form." Pyrite and magnetite also exhibit it. The cubic atomic unit cell of these minerals produces the rhombic dodecahedral external form through the geometry of close-packing.
CrystallographyThe eight order-3 vertices of a rhombic dodecahedron define a cube; the six order-4 vertices define a regular octahedron. The rhombic dodecahedron is precisely the convex hull of a cocentred cube–octahedron compound — it is both solids made convex, enclosing both simultaneously.
Compound solidSlicing the rhombic dodecahedron perpendicular to any of its four 3-fold symmetry axes (through opposite order-3 vertices) produces a regular hexagon. Three square cross-sections exist perpendicular to the 4-fold axes. The solid simultaneously contains both the hexagonal and square symmetries.
Cross-sectionsThe orthogonal projection of a four-dimensional hypercube (tesseract) along its main diagonal is exactly a rhombic dodecahedron. The eight cubic cells of the tesseract project to eight congruent rhombohedra that tile the interior of the dodecahedron perfectly. The 4D analogue of a cube casts a 12-faced shadow.
4D geometryThe rhombic dodecahedron is a convex polyhedron classified as a Catalan solid — one of 13 solids that are duals of the 13 Archimedean solids. As the dual of the cuboctahedron, it inherits full octahedral symmetry (group Oh, order 48). It is characterised by 12 congruent rhombic faces, 24 edges, and 14 vertices of two types. The face diagonals are in the ratio 1:√2 and the dihedral angle between adjacent faces is exactly 120°. The rhombic dodecahedron is a parallelohedron — one of five convex polyhedra that tessellate Euclidean 3-space by translation alone, making it fundamental to crystallography, architectural space planning, and the study of efficient geometric packing.
